TIM-1XXXXXX |

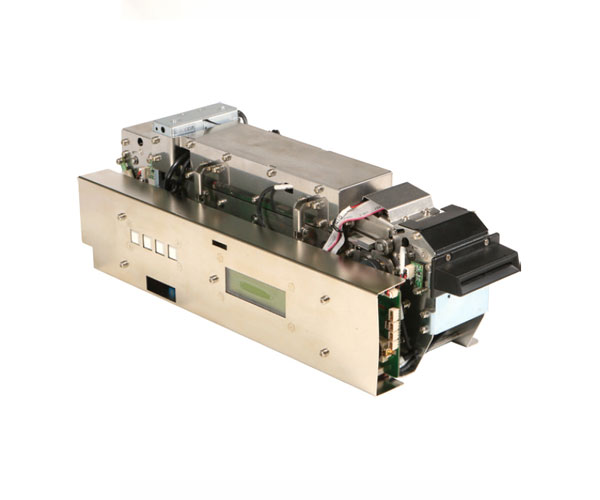

Fanfold Type Paper Ticket Issuing Machine for MS Read/Write
Fanfold Type Paper Ticket Issuing Machine for MS Read/Write
TIM-1XXXXXX
Features
- Fanfold type paper ticket issuing machine
- Single or dual fanfold ticket charge is available
- ISO 7811 MS read/write (Lo-Co/Hi-Co selectable)
- Thermal printer : 200dpi resolution (Direct thermal)
- Error ticket capture function
- MS write, verify and print in a single pass
- Guillotine type cutter
- Clamshell type body and LCD display for easy operation and maintenance
- High speed ticket issuing : 1.8 sec. per ticket
- Intelligent monitoring of all processes such as card empty, card low level with its own microprocessor
- High reliability with simple and robust structure
- RS-232C interface
- RoHS compliant
Specification
| Interface | RS232 | Thermal Head Life | 50Km |
|---|---|---|---|
| Card Loading Capacity | Box or roll tickets | Cutter Life | 500,000 cuts |
| Card Issuing Time | With Cutting and Standby : 2.5 second | Solenoid Life | Min 2,000,000 Cycle |
| Card Type | ISO/IEC 7810 ID-1, ISO/IEC 7811-1,-2,-6 | Supply Voltage & Current Consumption |
Without Load : DC 24V – 100mA With Load : DC24V – 4A |
| Card Material | Fanfold paper ticket with Thermal Writable Coating | Total Weight (Kg) | Single Pack : 3.1Kg Dual Pack : 4.0Kg |
| Max. Card Thickness | 0.18mm | Applicable Cards | Ticket vending machine, Public transportation system Parking system, Fare and toll collection system |
| Interface Connector | RS232 : 9PIN | Locus | In the Cabinet |
| Magnetic Head Life | Approximately 3,000,000 passes |
| Interface | RS232, USB |
|---|---|
| Card Loading Capacity | Box or roll tickets |
| Card Issuing Time | With Cutting and Standby : 2.5 second |
| Card Type | ISO-1443A(Mifare, Ultra light) |
| Card Material | Fanfold paper ticket with Thermal Writable Coating |
| Max. Card Thickness | 0.18 mm ~ 1.00 mm |
| Interface Connector | RS232 : 9PIN |
| Thermal Head Life | 50Km |
| Cutter Life | |
| Solenoid Life | |
| Supply Voltage & Current Consumption |
Without Load : DC 24V – 100mA With Load : DC24V – 5A |
| Total Weight (Kg) | 1PACK, 2PACK |
| Applicable Cards | Ticket vending machine, Public transportation system Parking system, Fare and toll collection system Control Access system |
| Locus | In the Cabinet |
Model Numbering Table
| Interface | MS Ticket | MS Ticket Track | Option I | Option II | Option III |
| RS-232C | 0 : – 1 : MS Read/Write |
0 : Without Magnetic 7 : ISO 1,2,3 Track |
1 : LOW-CO Short bezel 2 : HI-CO Short bezel 6 : Short Bezel 7 : LOW-CO Without Bezel 8 : HI-CO Without Bezel |
0 : Without Printer 1 : With Printer |
S : Single Charge D : Dual Charge |
