Dual Stacker Type Card Dispenser

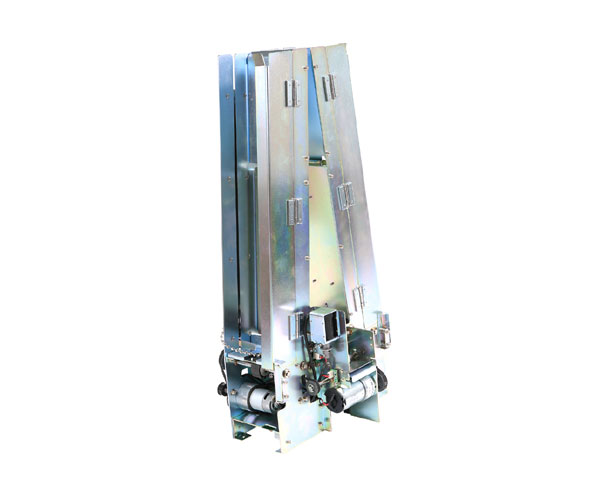

KYT-2000

KYT-2600

KYT-2600

Features

Dual capacity of card loading : max. 1,000 card capacity
Dual stacker type dispenser with rubber roller to dispense
Single card outlet with 2 different card dispensing
Error card capture function included
Intelligent monitoring of all processes such as card empty, card low level and error card bin full warning with its own microprocessor
High reliability with simple and robust structure
Fundamentally prevent 2 card dispensing with unique clutch system
Easy adjusting of card thickness between 0.2mm and 1.0mm
RS-232C interface

Specification

Interface	RS232	Interface Connector	RS232 : 3PIN
Card Loading Capacity	400/600/800/1000 (In Case of 0.76mm Card)	Supply Voltage & Current Consumption	Without Load : DC 24V – 50mA With Load : DC24 – 2000mA
Card Feeding Speed	MAX 1.8(Sec)	Total Weight (Kg)	5Kg ~ 6Kg
Card Type	ISO standard cards(Non-Embossed)	Applicable Cards	Phone Card, Credit, Debit, Pre-paid, I.C, R/F, Parking Card, etc.
Card Material	P.V.C, A.B.S, P.E.T, etc.	Locus	In the Cabinet
Max. Card Thickness	0.2 ~ 1.0 mm

Interface	RS232
Card Loading Capacity	400/600/800/1000 (In Case of 0.76mm Card)
Card Feeding Speed	MAX 1.8(Sec)
Card Type	ISO standard cards(Non-Embossed)
Card Material	P.V.C, A.B.S, P.E.T, etc.
Max. Card Thickness	0.2 ~ 1.0 mm
Interface Connector	RS232 : 3PIN
Supply Voltage & Current Consumption	Without Load : DC 24V – 50mA With Load : DC24 – 2000mA
Total Weight (Kg)	5Kg ~ 6Kg
Applicable Cards	Phone Card, Credit, Debit, Pre-paid, I.C, R/F, Parking Card, etc.
Locus	In the Cabinet

Model Numbering Table

Interface	Function	Type	Capacity	Thickness	Thickness
T : RS-232C	2 : Dispenser	6 : Dual Stacker	3 : 400 PCS(200×2) 4 : 800 PCS(400×2) 5: 600 PCS(300×2) 6 : 1000 PCS(500×2)	1 : 0.2T 2 : 0.38T 3 : 0.5T 4 : 0.76T 5 : 0.84T 6 : 1.0	0 : Without Side Door + Capture Error BIN 1 : Without Side Door + Capture Slide Drop 2 : Side Door + Capture Error Bin 3. Side Door + Capture Slide Drop
