KSC-2100 |

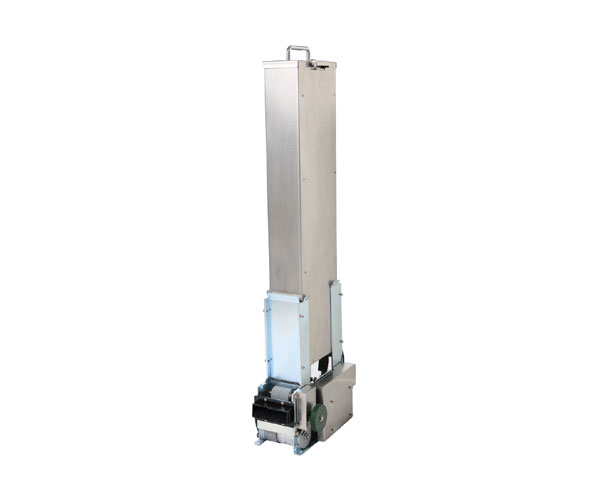

Card Dispenser (Security Cartridge Single Type, with Rubber Roller)
Card Dispenser (Security Cartridge Single Type, with Rubber Roller)
KSC-2100
Features
- Max. 500 card capacity with 0.76mm thickness
- Locking mechanism to completely seal the cartridge
- Mechanical locking the cartridge with the dispenser
- Memory in each cartridge for the secure operation
– Serial number of the cartridge
– Quantity of the cards stacked in the cartridge - RS-232C interface
Specification
| Interface | RS232 | Interface Connector | RS232 : 3PIN |
|---|---|---|---|
| Card Loading Capacity | 200/300/500 (In Case of 0.76mm Card) | Supply Voltage & Current Consumption |
Without Load : DC 24V – 50mA With Load : DC24V – 3000mA |
| Card Feeding Speed | MAX 1.5(Sec) | Total Weight (Kg) | 4.0Kg ~ 4.3Kg |
| Card Type | ISO standard cards(Non-Embossed) | Applicable Cards | Phone Card, Credit, Debit, Pre-paid, I.C, R/F, Parking Card, etc. |
| Card Material | P.V.C, A.B.S, P.E.T, etc. | Locus | In the Cabinet |
| Max. Card Thickness | 0.76 ~ 1.0 mm |
| Interface | RS232 |
|---|---|
| Card Loading Capacity | 200/300/500 (In Case of 0.76mm Card) |
| Card Feeding Speed | MAX 1.5(Sec) |
| Card Type | ISO standard cards(Non-Embossed) |
| Card Material | P.V.C, A.B.S, P.E.T, etc. |
| Max. Card Thickness | 0.76 ~ 1.0 mm |
| Interface Connector | RS232 : 3PIN |
| Supply Voltage & Current Consumption | Without Load : DC 24V – 50mA With Load : DC24V – 3000mA |
| Total Weight (Kg) | 4.0Kg ~ 4.3Kg |
| Applicable Cards | Phone Card, Credit, Debit, Pre-paid, I.C, R/F, Parking Card, etc. |
| Locus | In the Cabinet |
Model Numbering Table
| Interface | Function | Type | Capacity | Thickness | Option I | Option II |
| RS-232C | 2 : Dispenser | 1 : Security Cartridge | 2 : 200 PCS 3 : 300 PCS 4 : 500 PCS |
4 : 0.76T 5 : 0.84T 6 : 1.0T |
0 : – 1 : Short Bezel 2 : Shutter |
0 : – 1 : With Memory 2 : Without Memory |
