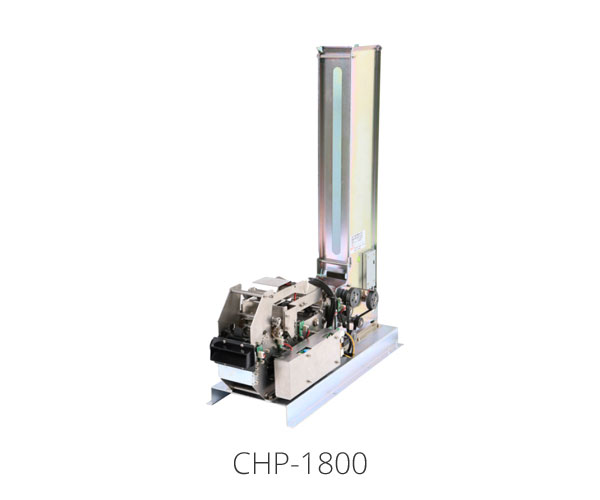

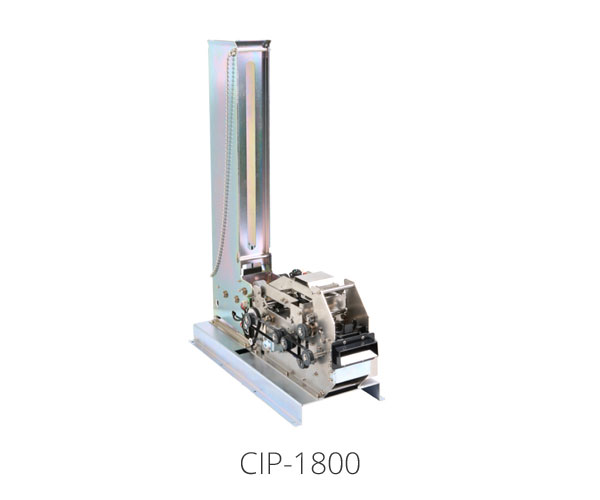

CIP-1800 & CHP-1800 Series |
RF Card Dispenser with Thermal Rewritable Printer
RF Card Dispenser with Thermal Rewritable Printer
CIP-1800 & CHP-1800 Series
Features
- Card Issuing Machine with Thermal Rewritable Printer
– Stacker type card dispenser : max. 500 card capacity with 0.76mm thickness
– ISO 14443 RF card reader/writer
– Thermal Rewritable Printer - Error card capture function
- RS-232C or USB interface
- High speed card printing
- Power supply : 24VDC, 5A
- Intelligent monitoring of all processes such as card empty, card low level with its own microprocessor
- High reliability with simple and robust structure
- RoHS compliant
Specification
| Interface | RS-232C, USB | Max. Card Thickness | 0.76mm ~ 1.0mm |
|---|---|---|---|
| Card Loading Capacity | 200/300/500 cards (In Case of 0.76mm Card) | Interface Connector | RS-232C : 9PIN USB : Type B |
| Card Dispensing Time | 300mm/Sec | Supply Voltage & Current Consumption |
Without Load : DC 24V – 100mA With Load : DC24V – 5A |
| Re/Write Card Type | Thermal Rewritable Film 0.76T : TRGS33T2A |
Total Weight (Kg) | ? |
| RF Card Type | ISO-14443A(Mifare) | Applicable Cards | Ticket vending machine, Public transportation system Parking system, Fare and toll collection system |
| Thermal Head Life | 50Km | Locus | In the Cabinet |
| Solenoid Life | Min 2,000,000 Cycle |
| Interface | RS-232C, USB |
|---|---|
| Card Loading Capacity | 200/300/500 cards (In Case of 0.76mm Card) |
| Card Dispensing Time | 300mm/Sec |
| Re/Write Card Type | Thermal Rewritable Film 0.76T : TRGS33T2A |
| RF Card Type | ISO-14443A(Mifare) |
| Thermal Head Life | 50Km |
| Solenoid Life | Min 2,000,000 Cycle |
| Max. Card Thickness | 0.76mm ~ 1.0mm |
| Interface Connector | RS-232C : 9PIN USB : Type B |
| Supply Voltage & Current Consumption |
Without Load : DC 24V – 100mA With Load : DC24V – 5A |
| Total Weight (Kg) | ? |
| Applicable Cards | Ticket vending machine, Public transportation system Parking system, Fare and toll collection system |
| Locus | In the Cabinet |
Model Numbering Table
| Mechanism | Function | Type | Option I | Capacity | Option II | Option III | ||
| I : Rubber Roller H : Metalic Finger |
1 : Single Stacker | 0 : Printer only 8 : Printer with RF |
0 : Without Bezel 1. Short Bezel |
D : 0.76T E : 0.84T |
J : 0.76T K : 0.84T |
P : 0.76T Q : 0.84T |
0 : – 1 : Case |
0 : – 1 : RS-232C 2 : USB |
| 200 PCS | 300 PCS | 500 PCS | ||||||
