Elevator Type Card Dispenser & Collector (with GEA Compatible Cartridge , Max. 750 cards capacity)

CIM/CCM-9000 |

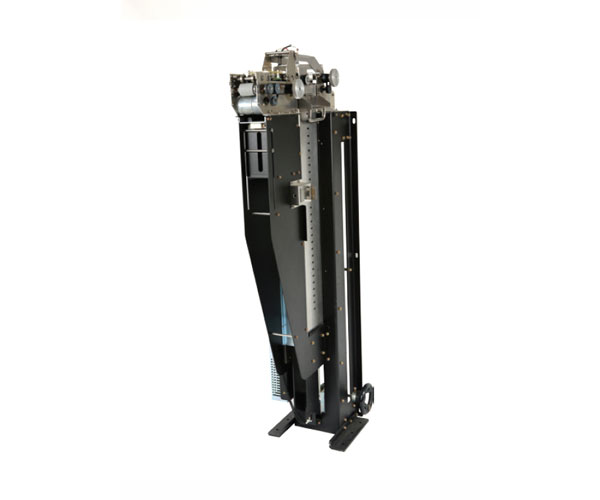

Elevator Type Card Dispenser & Collector
(with GEA Compatible Cartridge , Max. 750 cards capacity)

CIM/CCM-9000

Features

Elevator type card dispenser & collector with GEA compatible cartridge
ISO 14443 RF card reader/writer
Error card capture function
Card Issuing and collecting are available in one unit
– 750 card capacity with 0.76mm thickness
– Easy for operation with the exchangeable cartridges
Card thickness can be adjustable between 0.76mm and 1.0mm
RS-232C interface

Specification

Interface	RS232	Interface Connector	RS232 : 9PIN
Card Loading Capacity	750(In Case of 0.76mm Card)	Supply Voltage	AC 110 ~ AC 220V Free voltage
Card Dispensing Time	MAX 1.5(Sec)	Total Weight (Kg)	Kg
RF Card Type	ISO-14443A (Type A)	Applicable Cards	Phone Card, Credit, Debit, Pre-paid, I.C, R/F, Parking Card, etc.
Card Material	P.V.C, A.B.S, P.E.T, etc.	Locus	In the Cabinet
Card Thickness	0.76mm

Interface	RS232
Card Loading Capacity	750(In Case of 0.76mm Card)
Card Dispensing Time	MAX 1.5(Sec)
RF Card Type	ISO-14443A (Type A)
Card Material	P.V.C, A.B.S, P.E.T, etc.
Card Thickness	0.76mm
Interface Connector	RS232 : 9PIN
Supply Voltage	AC 110 ~ AC 220V Free voltage
Total Weight (Kg)	Kg
Applicable Cards	Phone Card, Credit, Debit, Pre-paid, I.C, R/F, Parking Card, etc.
Locus	In the Cabinet

Model Numbering Table

Interface	Function	Type	Thickness
RS-232C	9 : Elevator Type Card Issuing & Collecting Machine with GEA compatible cartridge	0 : Without RF 7 : RF R/W	D: 0.76T E : 0.84T F : 1.0T
