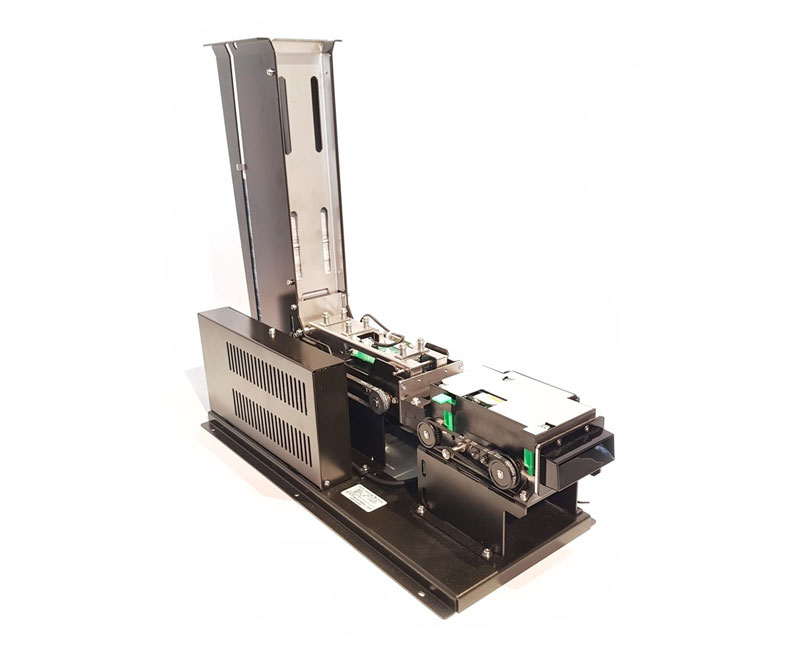

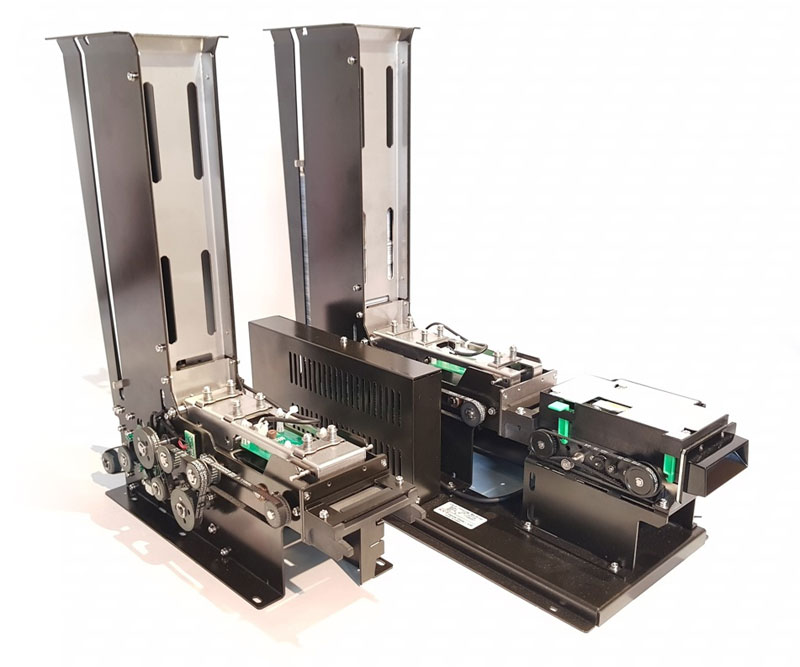

CDC-1000 & CDC-3000 Series |
Card Issue & Collector Dispenser
Card Issue & Collector Dispenser
CDC-1000 & CDC-3000 Series
Features
- Max. 300 card capacity dispenser/collector
- Error card capture function
- High reliability with simple and robust structure
- Easy card collecting and maintenance
- RS-232C/USB interface
Specification
| Interface | RS232/USB | Max. Card Thickness | 0.76mm |
|---|---|---|---|
| Card Loading Capacity | 100/300 (In Case of 0.76mm Card) | Interface Connector | RS232 : 3PIN,9PIN,USB : Mini Type B |
| Card Dispensing Time | MAX 5(Sec) | Supply Voltage | Without Load : DC 24V – 300mA With Load : DC24 – 3A |
| Mag. Card type | ISO/IEC 7810 ID-1, ISO/IEC 7811-1,-2,-6 | Total Weight (Kg) | kg |
| IC Card type | ISO/IEC 7816-1,-2,-3(T=0,T=1) EMV L1 Ver4.3c | Applicable Cards | Phone Card, Credit, Debit, Pre-paid, I.C, R/F, Parking Card, etc. |
| RF Card Type | ISO-14443(Type A/B, ISO15693) | Locus | In the Cabinet |
| Card Material | P.V.C, A.B.S, P.E.T, etc. |
| Interface | RS232/USB |
|---|---|
| Card Loading Capacity | 100/300 (In Case of 0.76mm Card) |
| Card Dispensing Time | MAX 5(Sec) |
| Mag. Card type | ISO/IEC 7810 ID-1, ISO/IEC 7811-1,-2,-6 |
| IC Card type | ISO/IEC 7816-1,-2,-3(T=0,T=1) EMV L1 Ver4.3c |
| RF Card Type | ISO-14443(Type A/B, ISO15693) |
| Card Material | P.V.C, A.B.S, P.E.T, etc. |
| Max. Card Thickness | 0.76mm |
| Interface Connector | RS232 : 3PIN,9PIN,USB : Mini Type B |
| Supply Voltage & Current Consumption |
Without Load : DC 24V – 300mA With Load : DC24 – 3A |
| Total Weight (Kg) | kg |
| Applicable Cards | Phone Card, Credit, Debit, Pre-paid, I.C, R/F, Parking Card, etc. |
| Locus | In the Cabinet |
Model Numbering Table
| Function | Type | Capacity | Interface | Option |
| 1 : Single Stacker | X : without RF Read/Write 0 : RF Read/Write |
1 : 100 2 : – 3 : 300 0.76 Thickness Only. |
1 : RS-232C 2 : USB |
0 : Without bezel 1 : Short bezel 2 : Shutter |

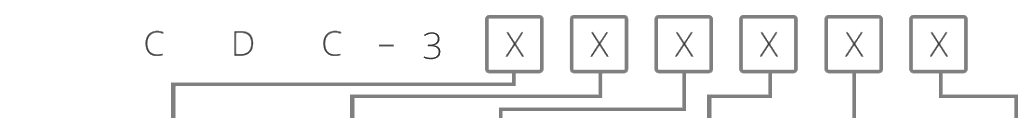

Model Numbering Table
| Function | Type | Capacity | Interface | Option | Option II | Option III |
| 3 : Card Issue & Collector with MS/IC Read/Write |
1 : MS Read/Write 2 : MS & IC 3 : MS & RF 4 : MS & IC & RF 5 : IC 6 : IC & RF 7 : MS Read Only |
1 : 100 2 : – 3 : 300 0.76 Thickness Only. |
1 : RS-232C 2 : USB |
0 : without Bezel 1 : Low-co Short Bezel 2 : Hi-co Short Bezel 3 : Low-co Shutter 4 : Hi-co Shutter 5 : Shutter 6 : Short Bezel 7 : Low-co without Bezel 8 : Hi-co without Bezel |
0 : – D : Card Drop (without Bezel) |
0 : – H : Hi-co & Low-co Selector |
2-Card dispenser
3-Card Collector
5-Card Issuing and Collecting
Single Type
